| Target Segment |
|
| Form Factor |
- ATX
- Size: 12" x 9.5" (W x
H)
|
| Processor Support |
- Single Intelｮ
Xeon・processors up to 3.06GHz with 512K L2 cache
|
| Chipset |
- ServerWorks GC-SL chipset
|
| Front Side Bus |
|
| Memory |
- Up to 4 GB ECC registered
DDR-200/266 memory in 4 DIMM slots
- Supports only registered ECC
memory. Non-ECC or unbuffered memories are not supported.
(Memory ecommendation list)
|
| I/O Expansion |
-
3
64-bit 33MHz PCI
-
2
32-bit 33MHz PCI
|
| Onboard
Devices |
- Adaptec 7902
dual-channel Ultra320 SCSI onboard
- Zero-channel RAID
support (Adaptec 2010S), card not included
- Dual
EIDE ports support Ultra DMA 100MB/s of Burst data
transfer rate, supports UDMA Mode 5,
PIO Mode 4 and ATA/100
- Broadcom
5702 Gigabit Ethernet
- Intel
82551 10/100 fast Ethernet
- ATI
Rage XL 8MB PCI graphic controller
- 1
Floppy
- 2
Fast UART 16550 serial ports
- 1
ECP/EEP parallel port
- Up
to 4 USB ports
- PS/2
keyboard and mouse ports
|
| PC
Health Monitoring |
- Monitoring the voltages of the CPU core and the
status of system power supply (+1.5V, +3.3V, + 5V,
+12V, VBAT)
- CPU/chassis
temperature monitoring
- CPU fan
auto-off in sleep mode
- CPU overheat LED
header (front panel)
- chassis intrusion
detection
|
| Management |
- Super Doctor
software (optional)
- DMI
support
|
|
| Special Features |
- Wake-on-LAN
allows for remote network management and configuration
of the PC, even in off-hours when the PC is turned
off. This reduces the complexity of managing a network.
- Onboard 3-phase switching power regulator supports CPU core
voltages from 1.1-1.85 volts
- 4 tachometer fan connectors
(for CPU, chassis, and thermal control fans)
- Keyboard
wake-up from Soft-off
- CPU frequency
settings - changeable by DIP switch
- Connector for
LED overheat indicator
- Overheat
backup fan connector for CPU protection
|
| BIOS Features |
- External modem
remote ring-on when system is in Soft-Off state
- BIOS rescue
hot keys for rescuing BIOS chip from flash
failure
- Hardware BIOS
virus protection
- AMI 4Mb Flash
ROM
|
|
Other Features |
- ACPI/APM power management
- Internal/external modem ring-on
- Control of power-on mode for recovery from AC
power loss
- One WOL (Wake-On-LAN) connector
- One chassis intrusion
header
- CPU Thermal trip
support
|
| Chassis
Compatibility |
- ATX
Chassis
-
Chassis Guide
- To
ensure system stability, a 400W (minimum) ATX12V
power supply (besides the 20 pins, 4-pin power connector) is
required.
- Please check
Support
for more details
|
| Standard Retail Package |

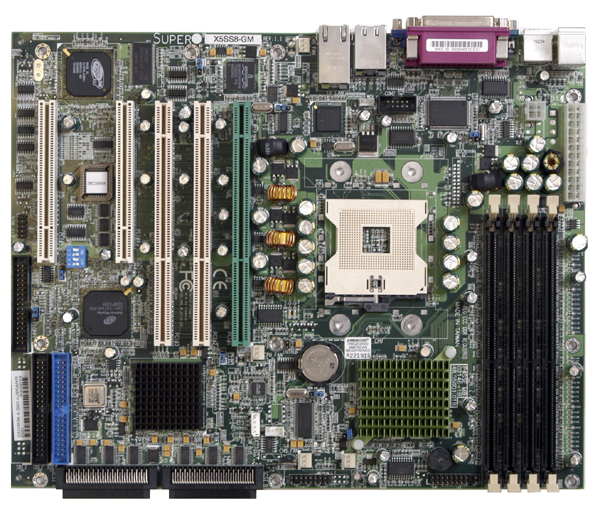

- One SUPER X5SS8 mainboard
- CPU heatsink
retention and clips
- 1 three-ended
80-wire/40-pin IDE UDMA/100 ribbon cable for high
speed UDMA IDE devices
- 1 floppy ribbon
cable
- 1 Fan-042 with
heatsink
-
One
BIOS/drivers CD
|
|
