| Target Segment |
|
| Form
Factor |
- Extended ATX
- Size: 12" x 13" (W x
H)
|
| Processor Support |
- Dual Intel
Xeon・processors up to 3.06GHz with 512K L2 cache
(with or without 1MB integrated L3 cache)
|
| Chipset |
|
| Front Side Bus |
|
| Memory |
- Up to 12 GB ECC registered
DDR-200/266 memory in 6 DIMM slots*
- Supports only registered ECC
memory. Non-ECC or unbuffered memories are not supported.
- Two-way interleaved memory banks provide outstanding memory performance.
(must use a pair of DIMMs for memory to function)
(Memory recommendation list)
|
| I/O Expansion |
- 1 64-bit 133MHz PCI-X
- 1 slim 64-bit 100MHz PCI
- 1 VXB
|
| Onboard
Devices |
- Adaptec AIC-7902
Ultra320 SCSI controller
- Intelligent Platform
Management Interface (IPMI) ver. 1.5 option
- Zero-channel RAID
support (Adaptec 2015S), card not included
-
Dual
EIDE ports support Ultra DMA 100MB/s of Burst data
transfer rate, supports UDMA Mode 5,
PIO Mode 4 and ATA/100
- Intel
82546EB dual port Gigabit Ethernet controller
- ATI
Rage XL 8MB PCI graphic controller
- 1
Floppy
- 2
Fast UART 16550 serial ports
- Up
to 5 USB ports
- PS/2
keyboard and mouse ports
|
| Other Features |
- ACPI/APM power management
- Internal/external modem ring-on
- Control of power-on mode for recovery from AC
power loss
- One WOL (Wake-On-LAN) connector
- One chassis intrusion
header
|
|
| Special
Features |
- Wake-on-LAN
allows for remote network management and configuration
of the PC, even in off-hours when the PC is turned
off. This reduces the complexity of managing a network.
- Onboard 3-phase switching power regulator supports CPU core
voltages from 1.1-1.85 volts
- 3 tachometer fan connectors
(for CPU, chassis, and thermal control fans)
- Keyboard
wake-up from Soft-off
- CPU frequency
settings - changeable in BIOS setup
- Connector for
LED overheat indicator
|
| Management |
- IPMI (Intelligent
Platform Management Interface) 1.5 option
- FUCI (Frontside USB
Control Interface)
- LDCM (LANDesk Client
Manager)
- LDSM (LANDesk Server
Manager) option
- SuperO Doctor
software (optional)
- DMI
support
|
| BIOS
Features |
- RTC (Real-Time
Clock) wakeup
- External modem
remote ring-on when system is in Soft-Off state
- BIOS rescue
hot keys for rescuing BIOS chip from flash
failure
- Hardware BIOS
virus protection
- Phoenix 4Mb Flash
ROM
|
| PC
Health Monitoring |
- Monitoring the voltages of the CPU core and the
status of system power supply (+1.8V, +3.3V, +5V, ｱ12V)
- CPU/chassis
temperature monitoring
- CPU fan
auto-off in sleep mode
- CPU overheat LED
header (front panel)
- chassis intrusion
detection (through LDCM)
- Support for system
management software (LDCM)
|
| Chassis
Compatibility |
|
| Standard
Retail Package |

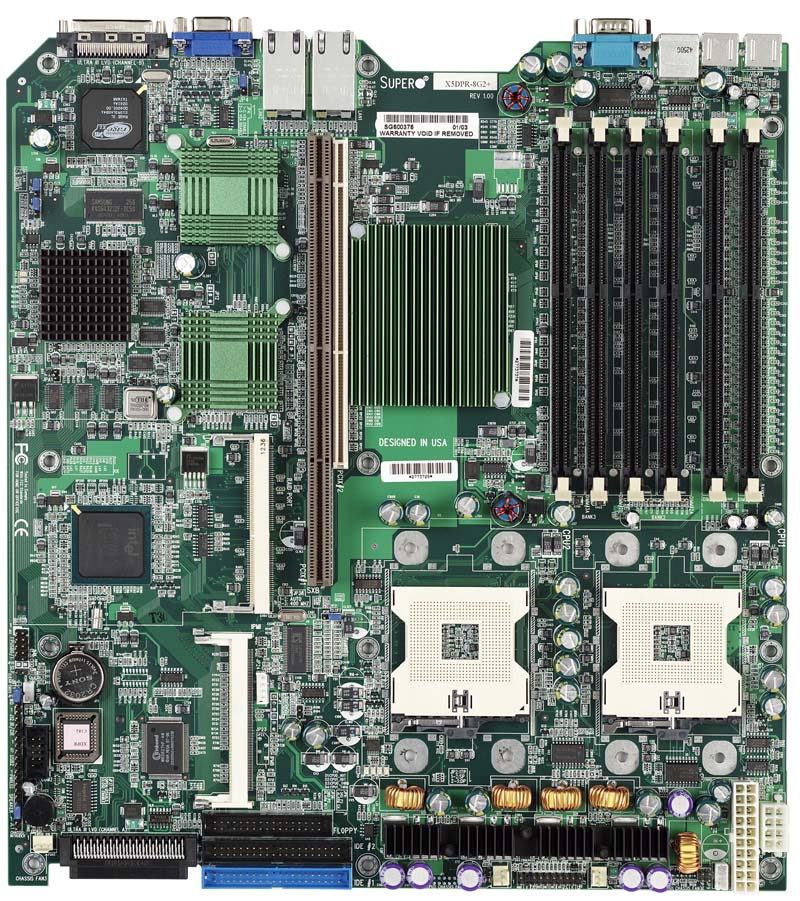

- X5DPR-8G2+ is exclusive
for SS6013P-8
|
|
