| Memory |
- Up to 4GB of DDR-400/333/266
ECC or non-ECC unbuffered DDR SDRAM
|
| I/O Expansion |
- 4 32-bit,
33 MHz PCI bus mastering slots
- 3 16-bit ISA slots
|
| Form
Factor |
- ATX with PC99
color-coded double-deck I/O
- Size: 12" x 9.5" (W x
H)
|
| Target Segment |
- High-end desktop,
workstation, and entry-level servers
|
| Processor
Support |
- Single Intel 478-pin Pentium 4
processor up to 3.06GHz w/ hyper threading
- Single Intel 478-pin Celeron
processor up to 2.4GHz
- All CPUs
noted above MUST BE 0.13 micron technology
|
| Chipset |
|
| Front
Side Bus |
|
| Onboard Devices |
- ATI Rage XL SVGA 8MB PCI
video controller
- IntelR
ICH5-R SATA controller supporting 2 SATA connectors
for 2 drives (RAID 0)
- Dual Ultra DMA/100
- Burst data
transfer rate supports UDMA Mode 5, PIO Mode 4,
ATAPI
- Intel Gigabit Ethernet controller
- 2xUSB 2.0/1.1 Ports
- 3xUSB
headers support up to 6 additional USB 2.0/1.1 ports for
a max throughput of 480Mbps
- PS/2 keyboard
and PS/2 mouse connectors
- 1 fast UART
16550 compatible serial port
- 1 ECP/EPP
parallel port
- 1
Infrared header
- 1 floppy
port
|
| Chassis
Compatibility |
- ATX
Chassis
- SC811-IDEP4, SC742i-300,
SC733i-300, SC762-420
- To
ensure system stability, a 300W (minimum) ATX12V
power supply (with a 4 pin +12v power connector) is
required.
|
| PC Health Monitoring |
- Monitoring the voltages of the CPU core and the
status of system power supply (+3.3V, + 5V, + 12V)
- CPU/chassis
temperature monitoring
- CPU overheat LED header
- System
resource alert
- chassis intrusion
detection (through LDCM)
- Support for
system management software (LDCM)
|
|
| Special Features |
- Suspend to RAM
(STR): All tasks are stored in RAM and can be resumed
within 10 seconds from the minimum power consuming
suspend mode.
- Wake-on-LAN
allows for remote network management and configuration
of the PC, even in off-hours when the PC is turned
off. This reduces the complexity of managing a network.
- Onboard 4-phase switching power regulator supports CPU core
voltages from 1.1-1.65 volts
- 4 3-pin fan headers
w/ tachometer monitoring on 3 fan
(for CPU, chassis)
- Keyboard
wake-up from Soft-off
- Connector for
LED overheat indicator
|
| BIOS Features |
- Supports ACPI
(Advanced Configuration and Power Interface) and APM
(Advanced Power Management)
- Slow blinking
LED for Sleep State indicator
- Main switch
override mechanism. Power-up mode control upon
recovery from AC power loss
- PC Health
Monitoring protects your system from problems even
before they occur.
- DMI
support
- External modem
remote ring-on when system is in Soft-Off state
- Hardware BIOS
virus protection
- 4Mb Flash
ROM
|
| Other Features |
- Optional
CPU overclocking
- Intel
PAT (Performance Acceleration Technology)
- CPU
thermal trip support for processor protection
- +5V
standby alert LED
- SuperO Doctor II
system monitoring
- Watch
Dog
- Internal/external modem ring-on
- Control of power-on mode for recovery from AC
power loss
- One WOL (Wake-On-LAN) connector
- One chassis intrusion connector
|
| Standard Retail
Package |

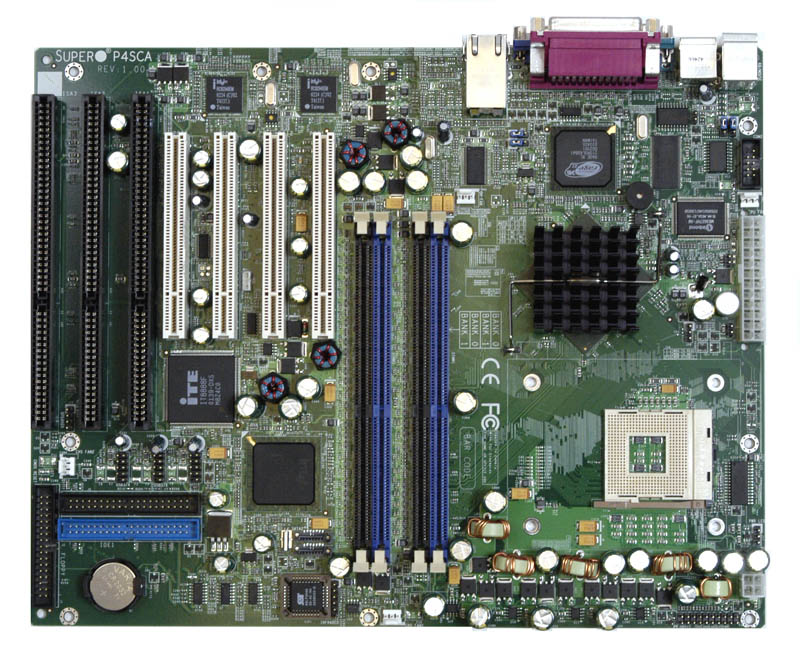

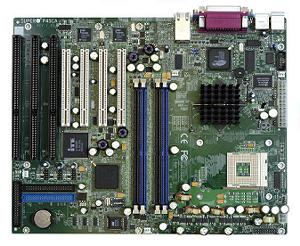

- One SUPER P4SCA
mainboard
- One CPU retention
kit
- One ATA 66/100
ribbon cable for IDE devices
- Two Serial-ATA
cables
- One COM port cable
- One USB 4-port cable
- One floppy ribbon
cable
- One I/O shield
- One User's manual
-
One BIOS/drivers CD
|
|
