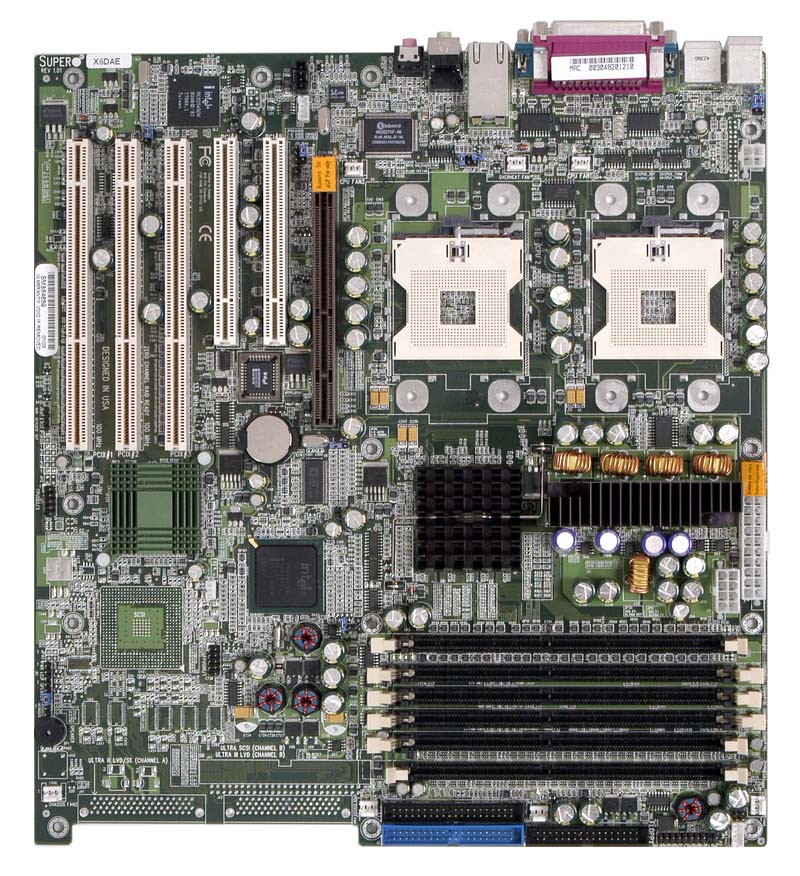

| Motherboard |
|
| CPU |
- Dual Intelｮ
Xeon・Processors of up to 3.06GHz with a 512K L2 cache
|
| Memory |
- Up to 12GB DDR SDRAM in
6 DIMM sockets*
- Supports only registered ECC
memory
|
| Front Side BUS |
|
| Chipset |
|
| I/O Expansion |
- 1 8xAGP
Pro 1.5V
- 1 64-bit 133MHz PCI-X
- 2 64-bit 100MHz PCI-X
- 2 32-bit 33MHz PCI
|
| Onboard I/O Devices |
- Dual
EIDE ports support Ultra DMA 100MB/s of Burst data transfer
rate, supports UDMA Mode 5, PIO
Mode 4 and ATA/100
- Intel
82545EM Gigabit Ethernet controller
- AC'97
audio CODEC high quality 6-channel sound
- 1
Floppy
- 2
Fast UART 16550 serial ports
- 1
ECP/EEP parallel port
- 4
USB2.0 ports
- PS/2
keyboard and mouse ports
|
| BIOS |
- 4Mb Flash ROM
- BIOS rescue recovery feature
- Hardware BIOS virus
protection
- Console redirection
- PXE headless support
|
|
| Chassis |
- SC742i-450
- Rackmount Kit optional
(CSE-PT26)
|
| Form
Factor |
|
| Power
Supply |
- Redundant Cooling
"Low-Noise" 450W power
supply
- Auto-switching 100/240 AC
power
|
| SCA
Subsystem |
- 7 x 3.5" IDE internal
drive bays
|
| Cooling
Subsystem |
- 1 9cm hot-plug
"low-noise" cooling fan
- 1 Heavy-duty 12cm
"low-noise" exhaust
fan
|
| External
Drive Bays |
- 1 3.5" 1.44MB Floppy drive
- 3 5.25" Drive bay
|
| Other
Features |
- ACPI/APM power management
- PC'99 color-coded I/O
connectors
- Internal/external modem
wake-up
- Control of power-on mode for
recovery from AC power loss
- Chassis intrusion detection
|
| PC
Health Monitoring |
- 4 Onboard voltage monitors
for CPU
- 4 Fan status
- Environmental temperature
monitor and control
- Chassis and CPU overheat
alarm, LED indication and control
- LAN LED, power fail LED
- System resource alert
- Supermicro System Management
utility(option)
- LDCM (LANDesk Client
Manager)
- LDSM (LANDesk Server
Manager) option
- SuperO Doctor software
(optional)
|
| Dimensions |
- Width: 7"
- Height: 17.1"
- Depth: 24.2"
|
|
|
|
