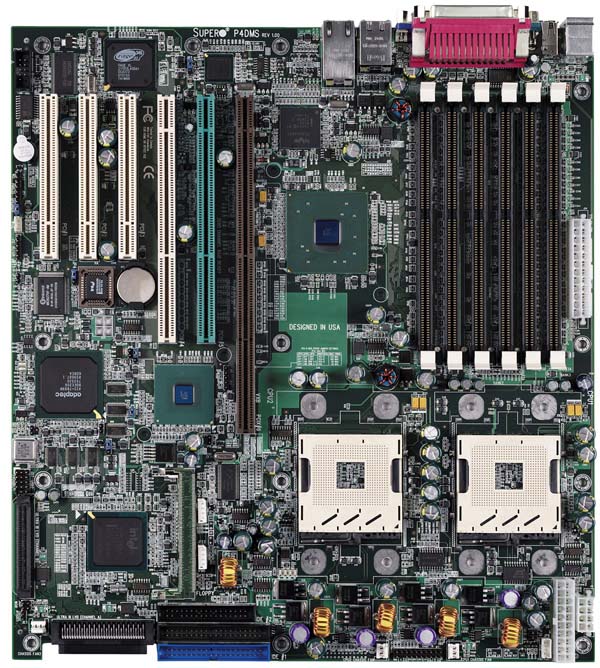

| Motherboard |
|
| CPU |
- Dual Intelｮ
Xeon・Processors of up to 3.0GHz with a 512K L2 cache
|
| Memory |
- Up to 12GB DDR SDRAM in
6 DIMM sockets*
- 2-way interleaved memory for outstanding
performance
|
| Front Side BUS |
|
| Chipset |
|
| I/O Expansion |
- Total of
3 PCI-X
- 1 64-bit, 133MHz PCI-X
- 2 64-bit, 66MHz PCI-X
- 3 32-bit, 33Mhz PCI
- 1 VXB (default)
|
| Onboard I/O Devices |
- Adaptec AIC-7899W dual channel Ultra 160(320) SCSI controller
- Intel 82544 Gigabit Ethernet
controller
- Intel
82550 Ethernet
controller
- 1 Adaptec
Zero-channel SCSI RAID (2000S) support.(card
as an optional)
- IPMI 1.5 (optional)
- ATI Rage XL 8MB PCI graphic
controller
- Dual Ultra DMA (UDMA/100)
bus master/EIDE channels support data transfer rates of up
to 100 MB/sec
- 2 Fast UART 16550 compatible
serial ports
- 4 USB ports
- PS/2 keyboard and mouse
ports
|
| BIOS |
- 4Mb Flash ROM
- BIOS rescue recovery feature
- Hardware BIOS virus
protection
- Console redirection
- PXE headless support
|
|
| Chassis |
- SC742S-420
- Rackmount Kit optional
(CSE-PT26)
|
| Form
Factor |
|
| Power
Supply |
- Redundant Cooling 420W power
supply (PWS-0038)
- Auto-switching 100/240 AC
power
|
| SCA
Subsystem |
- 7 Hot-swap Ultra160 SCA
3.5" SCSI drive bays (for one-inch high, 80-pin SCA
SCSI drives)
- SCA backplane provides
power, bus termination, and optional SAF-TE
|
| Cooling
Subsystem |
- 2 Hot-plug redundant 9cm fans
- 1 Heavy-duty 12cm exhaust
fan
|
| External
Drive Bays |
- 1 3.5" 1.44MB Floppy drive
- 3 5.25" Drive bay
|
| Other
Features |
- ACPI/APM power management
- PC'99 color-coded I/O
connectors
- Internal/external modem
wake-up
- Control of power-on mode for
recovery from AC power loss
- Chassis intrusion detection
|
| PC
Health Monitoring |
- 4 Onboard voltage monitors
for CPU
- 4 Fan status
- Environmental temperature
monitor and control
- Chassis and CPU overheat
alarm, LED indication and control
- LAN LED, power fail LED
- System resource alert
- Supermicro System Management
utility(option)
- LDCM (LANDesk Client
Manager)
- LDSM (LANDesk Server
Manager) option
- SuperO Doctor software
(optional)
|
| Dimensions |
- Width: 7"
- Height: 17.1"
- Depth: 24.2"
|
|
|
|
