| Motherboard |
|
| CPU |
- Dual Intelｮ Itanium2 Processors up to
1.50 GHz with 6MB L3 cache
|
| Memory |
- Up to 16 GB ECC registered
DDR-200 memory in 8 DIMM slots
- Supports only registered ?ECC
memory. Non-ECC or unbuffered memories are not supported.
-
Four-way
interleaved memory banks provide outstanding memory
performance.
(must use at least 4 pieces of memory to function)
|
| Front Side
BUS |
|
| Chipset |
|
| I/O Expansion |
- 1x
64-bit 133/100 MHz PCI-X (full length)
|
| Onboard I/O Devices |
- Intelligent Platform
Management Interface (IPMI) ver. 1.5 & 2.0 option (no card
included)
-
Dual
EIDE ports support Ultra DMA 100MB/s of Burst data
transfer rate, supports UDMA Mode 5,
PIO Mode 4 and ATA/100
-
Dual LAN Intel 82546EB Gigabit Ethernet controller
-
ATI
Rage XL 8MB PCI graphic controller
-
2
Fast UART 16550 serial port and header
-
Up
to 6x USB 2.0 ports (4x ports and 2x headers)
|
|
| Front
I/O |
|

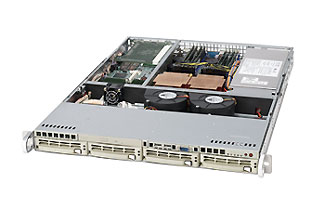

| Chassis |
- SC813Hi-500 (CSE-813Hi-500)
|
| Form
Factor |
|
| Power
Supply |
- 500W cold-swappable power supply
(PWS-0048) with I2C built in
- Auto-switching 100/240 AC
power
|
| Storage
System |
|
| Cooling
Subsystem |
- 2x 10cm heavy-duty blower fans
- 1x 4cm high speed fan
|
| External
Drive Bays |
|
| Other
Features |
- Onboard 3-phase
switching power regulator supports CPU core voltages
-
8 tachometer fan
connectors (for CPU, chassis, and thermal control
fans)
- Connector for
LED overheat indicator
- Control of power-on mode for recovery from AC
power loss
-
One chassis intrusion header
|
| PC
Health Monitoring |
- CPU
temperature monitoring
- CPU overheat LED header
(JF2 front panel)
- chassis intrusion
detection
-
System Voltage Monitoring
-
Fan Speed Monitoring
|
| Dimensions |
- Width: 17.2 in.
- Height: 1.7 in.
- Depth: 25.7 in.
- Weight: ~32 lbs. (net) ~42
lbs. (gross)
|
| BIOS |
- Hardware BIOS
virus protection
- AMI
6MB Flash ROM
|
|
|
|
