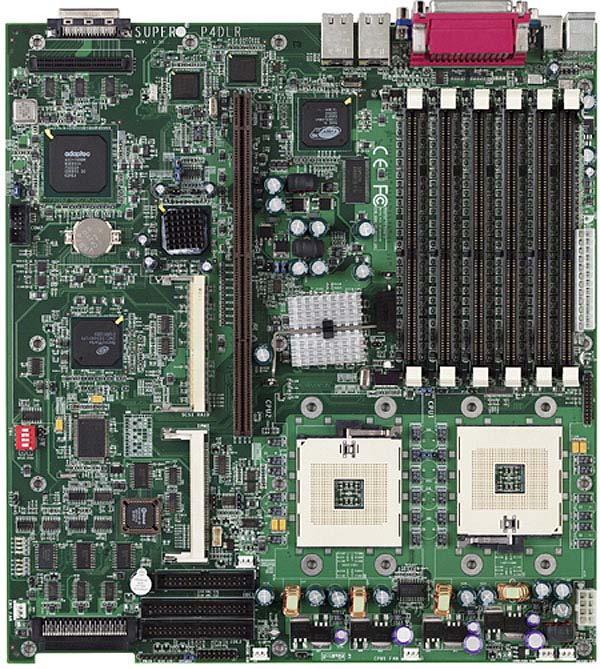

| Motherboard |
|
| CPU |
- Dual Intelｮ
Xeon・Processors of up to 3.0GHz with a 512K L2 cache
|
| Memory |
- Up to 12GB ECC registered
DDR*
- 2-way interleaved memory for outstanding
performance
|
| Front Side BUS |
|
| Chipset |
|
| I/O Expansion |
- 3 64-bit, 133/100MHz PCI-X
- 1 IMB
|
| Onboard I/O Devices |
- Adaptec AIC-7899W dual
channel Ultra 160(320) SCSI controller
- 2 Intel
ｮ
82550 Ethernet
controller
- 1
Adaptec
Zero-channel SCSI RAID controller (2005S)
support as an optional
- (IPMI) 1.5 (optional)
- ATI Rage XL 8MB PCI graphic
controller
- Dual Ultra DMA (UDMA/100)
bus master/EIDE channels support data transfer rates of up
to 100 MB/sec
- 2 Fast UART 16550 compatible
serial ports
- 2 USB ports
- PS/2 keyboard and mouse
ports
|
| BIOS |
- 4Mb AMI Flash ROM
- BIOS rescue recovery feature
- Hardware BIOS virus
protection
- Console redirection
- PXE headless support
|
|
| Chassis |
|
| Form
Factor |
|
| Power
Supply |
- dual 400W redundant hot-plug power
supplies (PWS-0037)
- Auto-switching 100/240 AC
power
|
| SCA
Subsystem |
- 6 Hot-swap Ultra160 SCA
3.5" SCSI drive bays (for one-inch high, 80-pin SCA
SCSI drives)
- SCA backplane provides
power, bus termination
|
| Cooling
Subsystem |
|
| External
Drive Bays |
- 1 Slim 1.44MB Floppy drive
- 1 Slim CD-ROM
- 1 5.25" Drive bay
|
| Other
Features |
- ACPI/APM power management
- Onboard AOL2 (Alert-on-LAN2)
controller chip
- PC'99 color-coded I/O
connectors
- Internal/external modem
wake-up
- Control of power-on mode for
recovery from AC power loss
- Chassis intrusion detection
|
| PC
Health Monitoring |
- 4 Onboard voltage monitors
for CPU
- 4 Fan status
- Environmental temperature
monitor and control
- Chassis and CPU overheat
alarm, LED indication and control
- LAN LED, power fail LED
- System resource alert
- Supermicro System Management
utility
|
| Dimensions |
- Width: 425 mm.
- Height: 88 mm.
- Depth: 652 mm.
- Weight: 54 lb.
|
|
|
|
