| Motherboard |
|
| CPU |
- Dual Intelｮ
Xeon・Processors up to 3.06 GHz with 512K L2 cache
|
| Memory |
- Up to 12GB ECC registered DDR266/200 SDRAM
memory (low-profile)*
- Two-way interleaved memory
modules provide outstanding memory performance
|
| Front Side BUS |
|
| Chipset |
|
| I/O Expansion |
- 1 64-bit, 133MHz PCI-X (full
length), w/ VXB
- 1 64-bit, 66MHz PCI (low
profile)
|
| Onboard I/O Devices |
- Intel
82546EB dual port Gigabit Ethernet controller
-

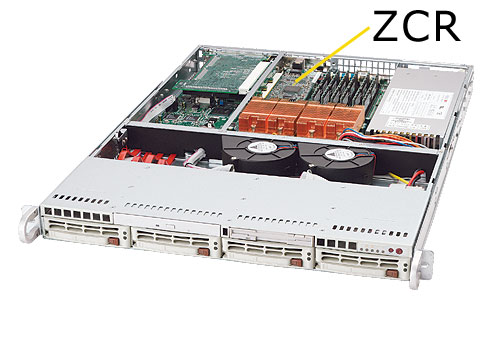

Zero channel RAID support for
ZCRINT SATA
Optional SATA Zero channel RAID card (more
details)
- IPMI 1.5 support (no card
included)
- ATI Rage XL 8MB PCI graphic
controller
- Dual Ultra DMA (UDMA/100)
bus master/EIDE channels support data transfer rates of up
to 100 MB/sec
- 2 Fast UART 16550 compatible
serial ports
- 2 USB ports
- PS/2 keyboard and mouse
ports
|
| BIOS |
- 4Mb Flash ROM
- BIOS rescue recovery feature
- Hardware BIOS virus
protection
- ACPI/APM power management
PnP
- PXE headless support
|
|
| Chassis |
|
| Form
Factor |
|
| Power
Supply |
- 500W cold-swappable power supply
- Auto-switching 100/240 AC
power
|
| SATA
Subsystem |
- 4x1" hot-swap SATA drive
bays
|
| Cooling
Subsystem |
- 2 10cm heavy-duty blower fans
|
| External
Drive Bays |
- 1 Slim 1.44MB Floppy drive
- 1 Slim CD-ROM
|
| Other
Features |
- ACPI/APM power management
- Onboard AOL2 (Alert-on-LAN2)
controller chip (optional)
- PC'99 color-coded I/O
connectors
- WOL (wake-on-LAN) connector
- Internal/external modem
wake-up
- Control of power-on mode for
recovery from AC power loss
- Chassis intrusion detection
|
| PC
Health Monitoring |
- 4 Onboard voltage monitors
for CPU
- 4 Fan status
- Environmental temperature
monitor and control
- CPU hot and thermal
trip
- Chassis and CPU overheat
alarm, LED indication and control
- System resource alert
- Supermicro System Management
utility
|
| サイズ |
- Width: 43.7cm
- Height: 4.3cm
- Depth: 65.0cm
- Weight: 14.5kg(net) 19.1kg(gross)
|
|
|
|
