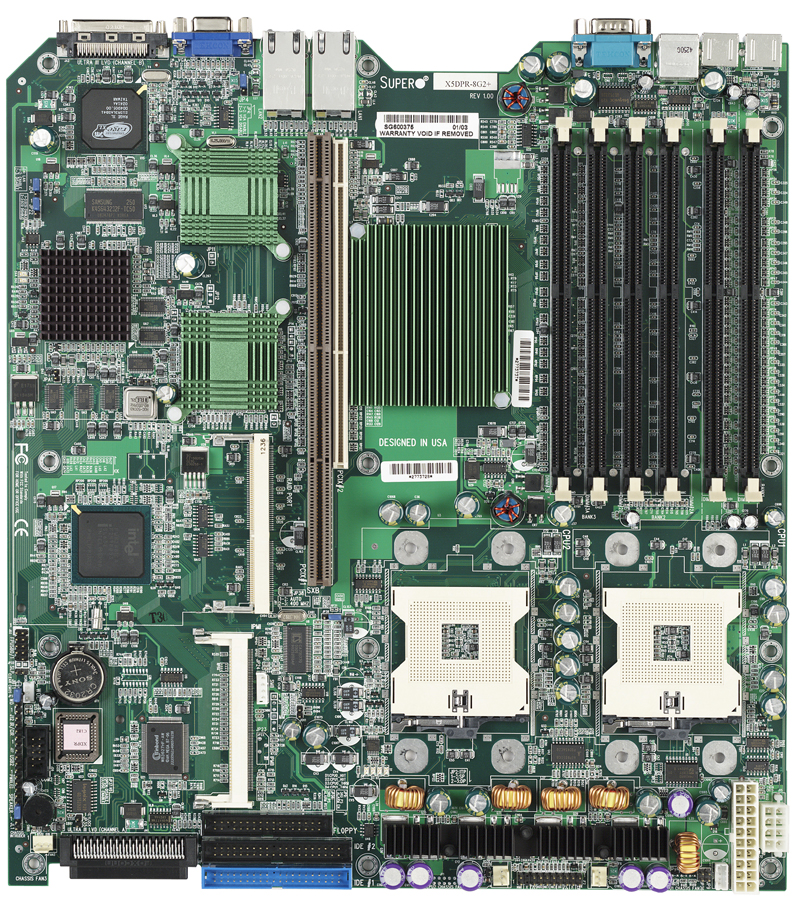

Motherboard |
|
CPU |
- Dual Intelョ
Xeon・Processors up to 3.06 GHz with 512K L2 cache
|
Memory |
- Up to 12GB ECC registered DDR266/200 SDRAM
memory (low-profile)*
- 6 two-way interleaved memory modules provide outstanding memory performance
|
Front Side
BUS |
|
Chipset |
|
I/O Expansion |
- 1 64-bit, 133MHz PCI-X (full
length)
- 1 64-bit, 66MHz PCI (low
profile)
- 1 VXB
|
Onboard I/O Devices |
- Adaptec AIC-7902 dual
channel Ultra320 SCSI controller
- Intel
82546EB dual port Gigabit Ethernet controller
- Adaptec 2015S Zero-channel SCSI RAID
support (no card included)
- IPMI 1.5 support (no card
included)
- ATI Rage XL 8MB PCI graphic
controller
- Dual Ultra DMA (UDMA/100)
bus master/EIDE channels support data transfer rates of up
to 100 MB/sec
- 2 Fast UART 16550 compatible
serial ports
- 4 USB ports
- PS/2 keyboard and mouse
ports
|
BIOS |
- 4Mb Flash ROM
- BIOS rescue recovery feature
- Hardware BIOS virus
protection
- ACPI/APM power management
PnP
- PXE headless support
|
|
Chassis |
|
Form
Factor |
|
Power
Supply |
- 400W cold-swappable power supply
(PWS-0036)
- Auto-switching 100/240 AC
power
|
SCA
Subsystem |
- 3 Hot-swap Ultra160/320 SCA 1" SCSI drive bays
(SAF-TE compliant, for one-inch high, 80-pin SCA SCSI
drives)
- SCA backplane provides
power, bus termination
|
Cooling
Subsystem |
- 2 10cm heavy-duty blower fans
|
External
Drive Bays |
- 1 Slim 1.44MB Floppy drive
- 1 Slim CD-ROM
|
Other
Features |
- ACPI/APM power management
- Onboard AOL2 (Alert-on-LAN2)
controller chip (optional)
- PC'99 color-coded I/O
connectors
- WOL (wake-on-LAN) connector
- Internal/external modem
wake-up
- Control of power-on mode for
recovery from AC power loss
- Chassis intrusion detection
|
PC
Health Monitoring |
- 4 Onboard voltage monitors
for CPU
- 4 Fan status
- Environmental temperature
monitor and control
- CPU hot and thermal
trip
- Chassis and CPU overheat
alarm, LED indication and control
- System resource alert
- Supermicro System Management
utility
|
Dimensions |
- Width: 16.8 in.
- Height: 1.7 in.
- Depth: 25.6 in.
- Weight: ~22 lbs. (net) ~39
lbs. (gross)
|
|
|
|
